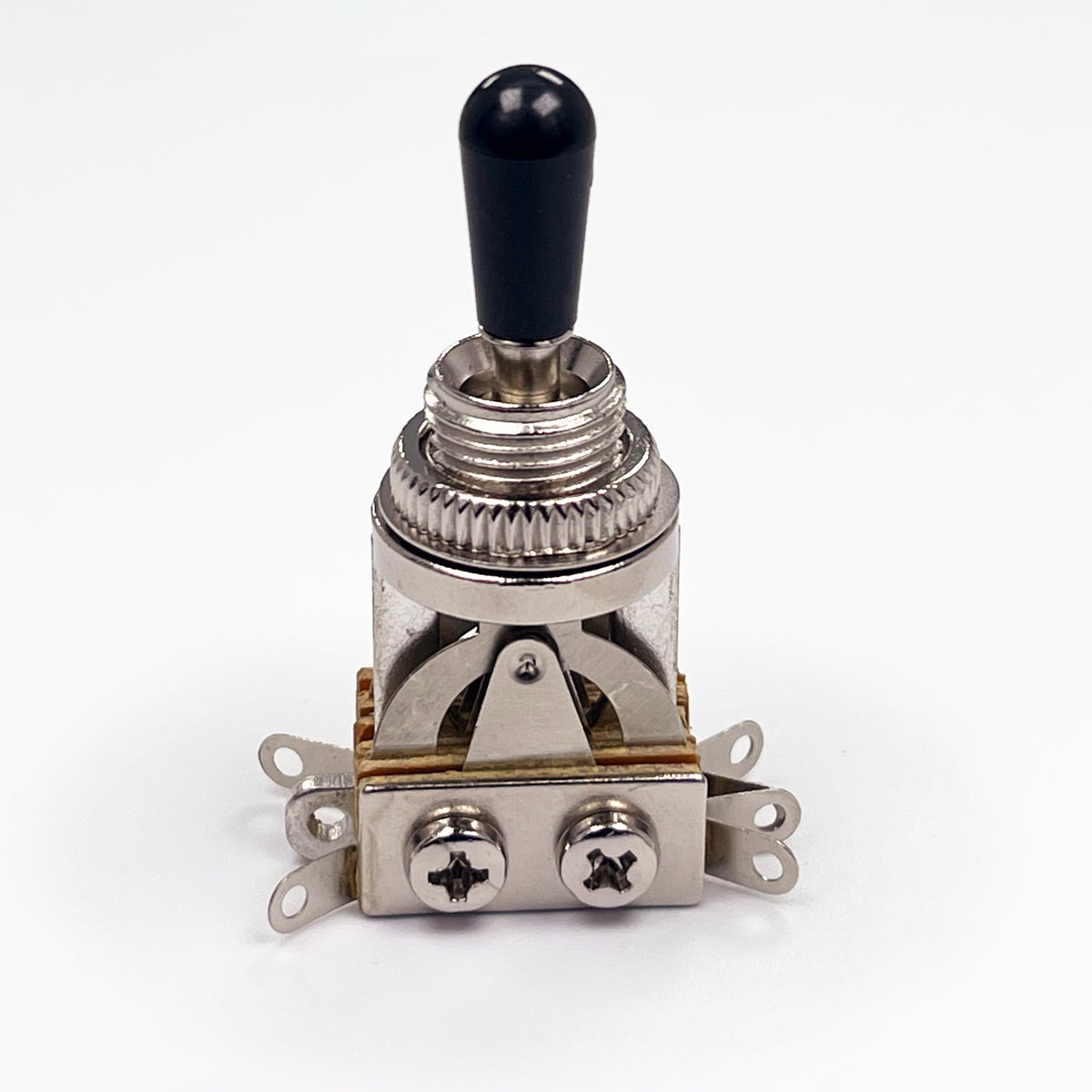

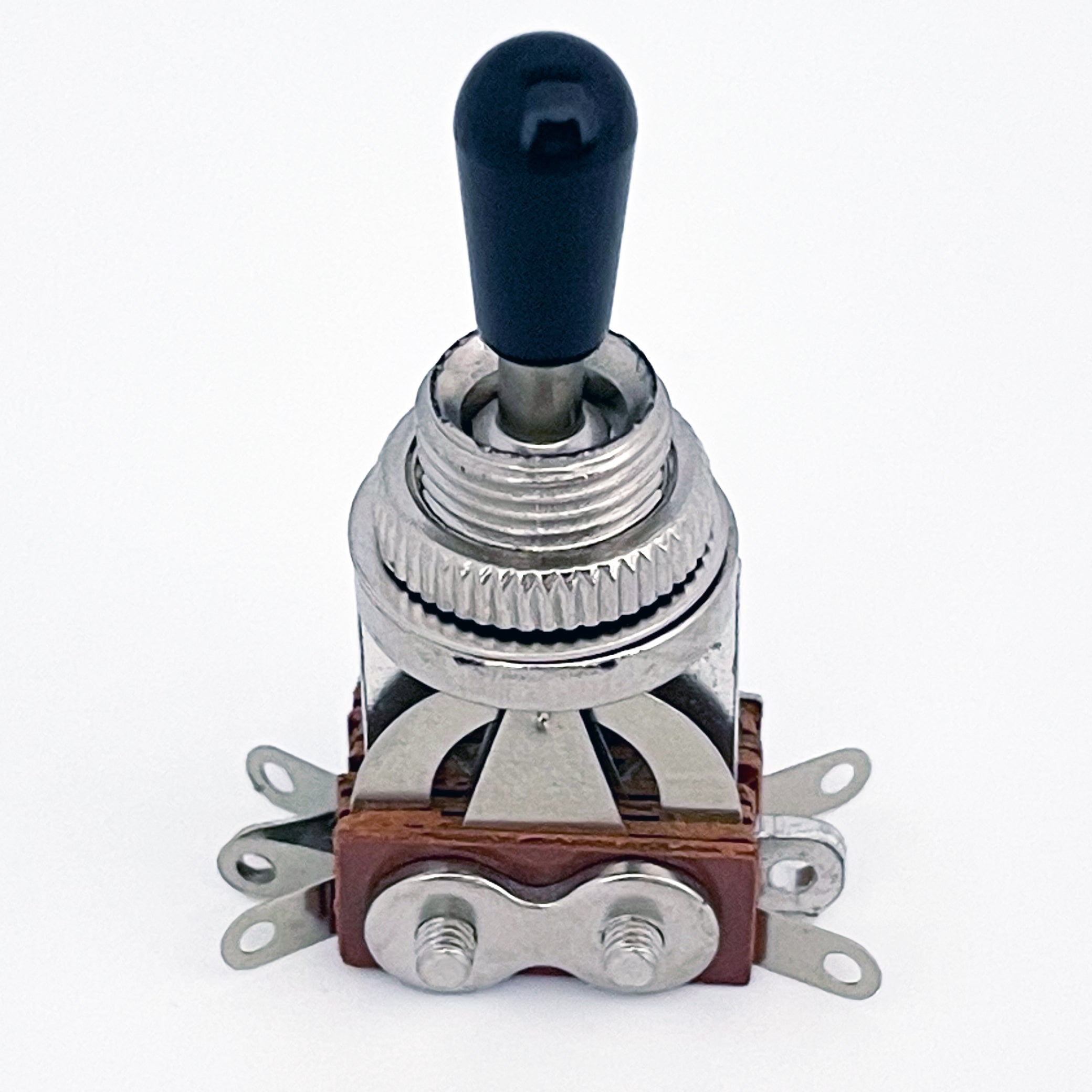

AxLabs 3-Way 6-Pole Toggle Switch

AxLabs
AX-TS-3W-6P-N
$9.99

Free Shipping

Free standard shipping on USA orders over $100

Shipping

Free shipping applies to continental US orders only. You will see the option present as a shipping option during checkout. AxLabs is not responsible if you choose a different shipping method.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Description

Authentic AxLabs Hardware high quality 6-pole, 3-way toggle switch.

MATERIALS
FRAME- STEEL, TIN PLATED
BUSHING - ZINC DIECAST
SHAFT - BRASS, NICKEL PLATED
INSULATION - BAKELITE
CONTACTS - NICKEL SILVER
SCREWS - STEEL, NICKEL PLATED
SHAFT INSULATOR - NYLON
TUBING - THERMOPLASTIC
KNOB - ABS


ELECTRICAL CHARACTERISTICS
- CONTACT RESISTANCE : 20 MILLIOHMS MAX
- CONTACT RATING: 3A, 300W MAX AC NON-INDUCTIVE LOAD
- LEAKAGE RESISTANCE: 1000 MEGAOHMS OR GREATER
- DIELECTRIC STRENGTH: 250VDC


THIS PRODUCT IS RoHS COMPLIANT.
