Original Limited 1984 Tremolo System

Floyd Rose
FRT1001984
$270.99

Subcribe to back in stock notification

Free Shipping

Free standard shipping on USA orders over $100

Shipping

Free shipping applies to continental US orders only. You will see the option present as a shipping option during checkout. AxLabs is not responsible if you choose a different shipping method.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

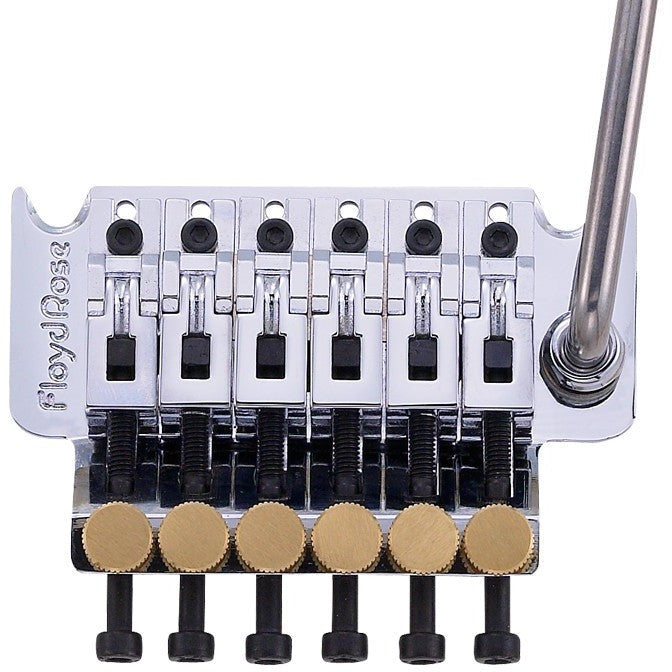

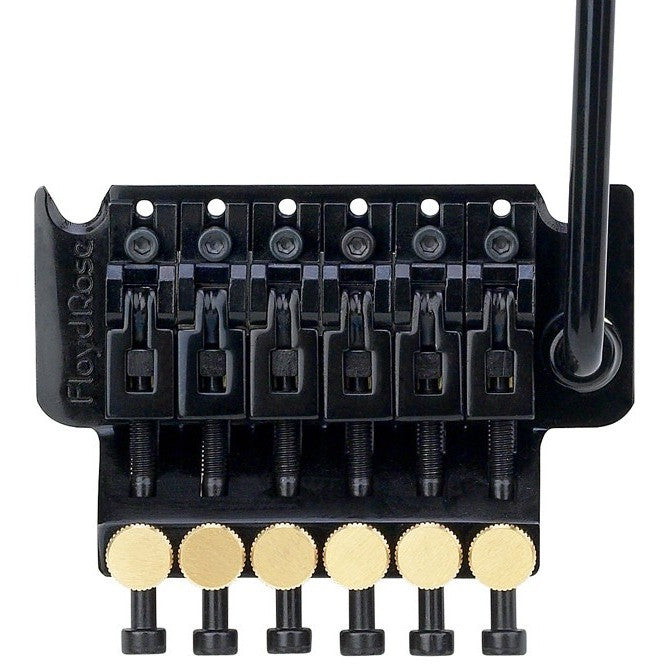

Taken from the original design specs of 1984, Floyd Rose has put together the "1984" tremolo system that recaptures the vibe and excitement from that era. The "1984" system is a true-to-the-original reissue that features brass fine tuners, old style housing and locked in swing arm, bridge mounting wood screws, and a fat solid brass block for incredible tone and sustain. Available in a variety of nut sizes that will fit practically any electric guitar, the tremolo kit contains the bridge, springs & claw, wood screws, and all hardware necessary for installation.

The Original 1984 Tremolo has a 10" radius out-of-the-box. A factory-installed shim under the center saddles can be removed, bringing the radius to a flatter 12". To match different radii, the individual saddles can be shimmed with either saddle shims (available on the web) or using copper or aluminum tape.

Please note: The "Made in Germany" stamp has been removed from the current production run of Original Tremolos. If you purchase an Original tremolo from an authorized reseller without this marking, rest assured that this is still the same heat-treated hardened steel Original Tremolo.

Locking nut sold separately here.

For tremolo dimensions, please see the PDF here.

Routing diagrams: Inches | MM

Specifications
Base Plate Hardened steel
Saddles CNC-machined hardened steel
Tremolo block 37mm Fat Brass Block
Tremolo arm Vintage-style (screw-in) | Stainless steel
String Retainer Hardened steel
Screws Stainless steel
Springs Coiled steel
Bridge Radius 10" with preinstalled shim / 12" without
